At 09:02 AM 10/11/2014, Axil Axil wrote:
The two pictures on page 25 of the 54 page report can be zoomed to a
high resolution by using the control key of your keyboard and the
wheel on your mouse if you are using a new windows computer running
with high screen resolution.
I zoomed and did screen captures :
http://lenr.qumbu.com/web_hotcat2_pics/141011_lugano_fig2.jpg
http://lenr.qumbu.com/web_hotcat2_pics/141011_lugano_fig12a.jpg

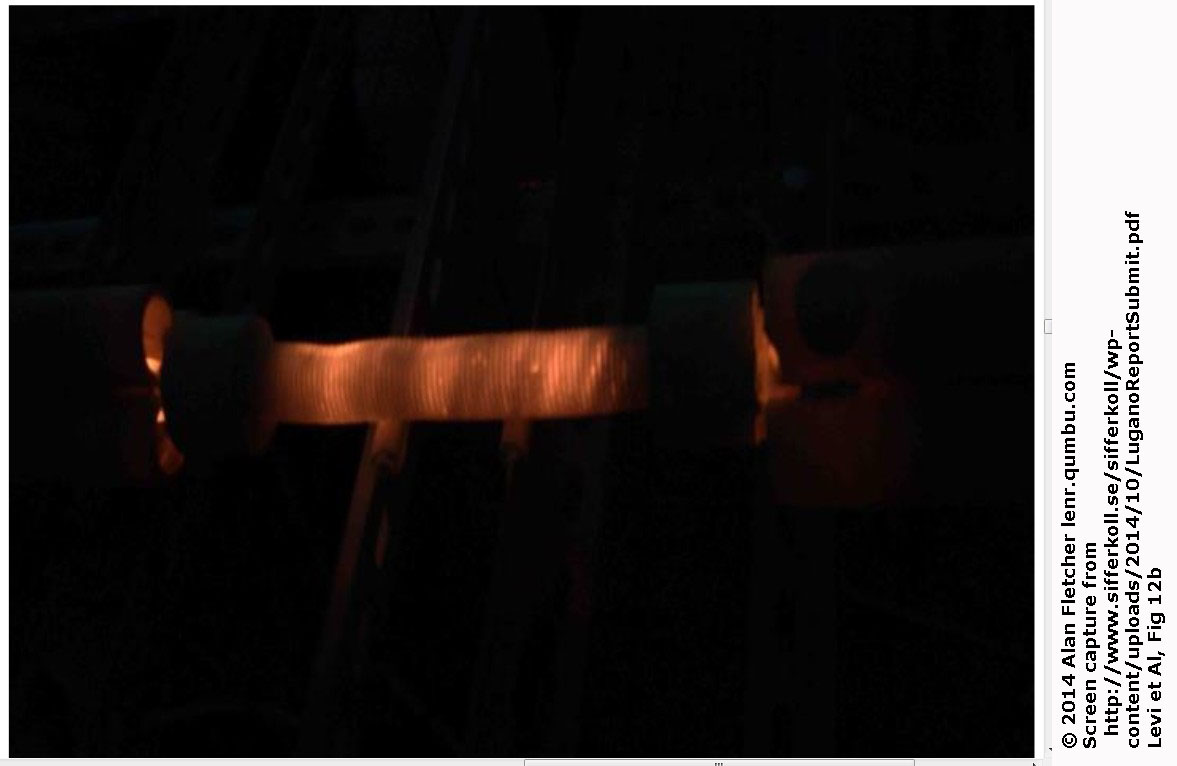

http://lenr.qumbu.com/web_hotcat2_pics/141011_lugano_fig12b.jpg
It's impossible to tell whether the heater coils are dark or light.
In the last hotcat test the heater coils themselves were a tight
spiral which was then strung lengthways : now it appears to be a
tight spiral coiled as loose spirals down the tube.
I think that there is most likely a ceramic insert holding these
resistors, so the "shadows" could represent different thermal zones
rather than being illuminated/shadowed.
But I'm just guessing. Too little information to proceed.
